3D Printing Difference :SLA VS PolyJet VS SLS

2022082804025299

Over the previous few many years, 3D printing know-how has undergone speedy growth. It has not solely modified the best way we manufacture objects but in addition expanded the boundaries of design, turning the not possible into attainable. The importance of this know-how is self-evident, showcasing great potential and worth throughout numerous fields comparable to medication, aviation, and development.

Among the many quite a few 3D printing applied sciences, SLA (Stereolithography)PolyJet, and SLS (Selective Laser Sintering) have emerged because the three mainstream applied sciences within the industry due to their unique printing principles and material dealing with strategies. This text will delve into the working principles, benefits, and downsides of those applied sciences, in addition to their purposes in numerous fields, aiming to offer readers with a transparent comparative perspective.

Numerical control machining refers to the processing of CNC machining tools, which has developed into one of the most critical manufacturing processes used in workshops around the world. The development of CNC machining technology has spawned various forms and variations of the technology. These include 3-axis, 4-axis and 5-axis and 7-axis CNC machines.   As a leading supplier of CNC machining services, we regularly receive questions from our customers about how these technologies work. So, we decided to learn more about them through this article. What Is 3-Axis CNC Machining ? 3-axis CNC machining has 3 axes that move in straight lines in different directions, namely X, Y and Z. The spindle of the CNC machining center moves in the X, Y and Z directions while the workpiece remains stationary. It can be used to create a variety of high-precision geometry, slot and face milling or drilling. The dimensional accuracy and repeatability of the machined parts are also very high. Advantages And Disadvantages: Function 3-Axis CNC Machining 4-Axis CNC Machining 5-Axis CNC Machining 7-Axis CNC Machining Machining Principle Move the machine in straight lines along the X, Y,and Z axes to create the desired shape In addition to the three axes,an A-axis is added,rotating around the X-axis It moves in the X, Y and Z directions and rotates in the two additional axes (A, B, C) Add four additional rotation axes (A,B,C, and D) to the three linear axes to move arbitrarily   Application Area Ideal for simpler parts,flat surfaces Suitable for more complex parts,rotary engraving Ideal for complex and high-precision parts More complex shapes and contours can be created Programming And Operation Easiest to program and operate More complex than triaxial and requires more advanced skills It's complicated and requires highly skilled operators The most complex ones require extremely high skill on the part of the operator What is 4-axis CNC machining 4-Axis compared to 3-axis machines add an additional A-axis that rotates 360° around the X-axis, allowing the workpiece to rotate, adding additional degrees of freedom and improving precision and accuracy. In this way, the machine can be used as both a milling machine and a lathe. Allows complex parts to be machined and milled at any Angle, which is not possible with 3-axis machining. What Is 5-Axis CNC Machining? 5-axis CNC machining adds two axes, usually A-axis and B-axis or C-axis, five axes can be fully processed to achieve a clamping, reduce clamping costs and product scratches, suitable for processing some parts with multi-station pores and parts with more strict shape processing accuracy requirements. What Is 7-Axis CNC Machining? By adding two additional rotating axes with greater flexibility and precision than five axes, complex parts can be machined from all angles, making it possible to produce complex shapes and geometry that were not possible before. 3 Axis, 4 Axis, 5 Axis and 7 Axis CNC Machining Comparison: Relative Property 3-Axis CNC Machining 4-Axis CNC Machining 5-Axis CNC Machining 7-Axis CNC Machining Price lower relatively high high very high Parts Accuracy lower relatively high high very high Part Complexity Simple parts More complex parts Complex parts Very complex parts Surface Smoothness not bad good very good excellent Why is Longsheng the best choice for parts processing? There are many reasons to choose our Longsheng CNC milling: High quality materials: Using only the highest quality materials and equipment, our manufacturing plant is equipped with advanced production lines that can handle a wide range of materials, including metals, plastics and composites. Strict tolerances: With more than 15 years of manufacturing experience, we handle cnc partswith tolerances up to 0.005mm.• Lead time: We simplify the innovation cycle into four simple and effective steps. You can have flawless parts in just 3 days. Working Principle And Application: Function 3-Axis CNC Machining 4-Axis CNC Machining 5-Axis CNC Machining 7-Axis CNC Machining Machining Principle Move the machine in straight lines along the X, Y,and Z axes to create the desired shape In addition to the three axes,an A-axis is added,rotating around the X-axis It moves in the X, Y and Z directions and rotates in the two additional axes (A, B, C) Add four additional rotation axes (A,B,C, and D) to the three linear axes to move arbitrarily Application Area Ideal for simpler parts,flat surfaces Suitable for more complex parts,rotary engraving Ideal for complex and high-precision parts More complex shapes and contours can be created Programming And Operation Easiest to program and operate More complex than triaxial and requires more advanced skills It's complicated and requires highly skilled operators The most complex ones require extremely high skill on the part of the operator Conclusion Three-axis machining is more accurate and cost-effective, suitable for simple parts processing, and has certain limitations for processing complex parts.4-axis milling adds A-axis, which, although more expensive than 3-axis machines, can process different faces of the workpiece and more complex parts. Five-axis milling adds a rotating shaft to the four-axis for more complex multi-angle machining, which is expensive but best suited for complex and high-precision parts.7-axis milling adds two additional rotating axes than 5-axis milling, costs more than 5-axis milling, but allows for greater flexibility and precision, and parts can be quickly completed and handled with more complex parts. FAQs  Can a 5-Axis machine be used to complete a job that only requires 3-Axis machining? Yes, the 5-axis machine can be used for 3-axis machining. However, it may not be cost-effective as 5-axis machines are generally more expensive to operate and maintain. What is 5-Axis machining programming? 5-Axis machining programming is a kind of special programming methods and tools, usually using a special programming language or software when programming, through the linkage control of the 5-axes of the machine tool, to achieve accurate and efficient processing of complex curved parts, it is an indispensable technology in modern manufacturing. How to find high-precision 3-Axis CNC machining service providers? First, determine your specific needs. It is important to determine your specific requirements for a part or product before starting your search. Determine the material, tolerance and surface finish requirements of the part. Once you've identified your needs, you can start looking for a high precision 3-axis CNC machining service provider. Longsheng is your reliable choice. We focus on providing the highest quality CNC machining services to meet the needs of customers around the world. Resource What´s the difference between 3 Axis, 4 Axis & 5 Axis Milling?

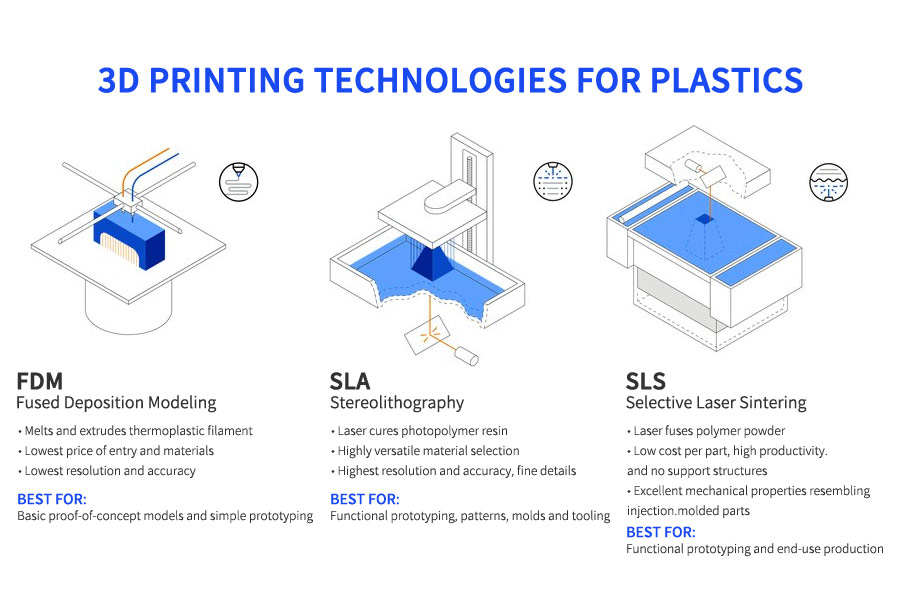

What’s SLA?

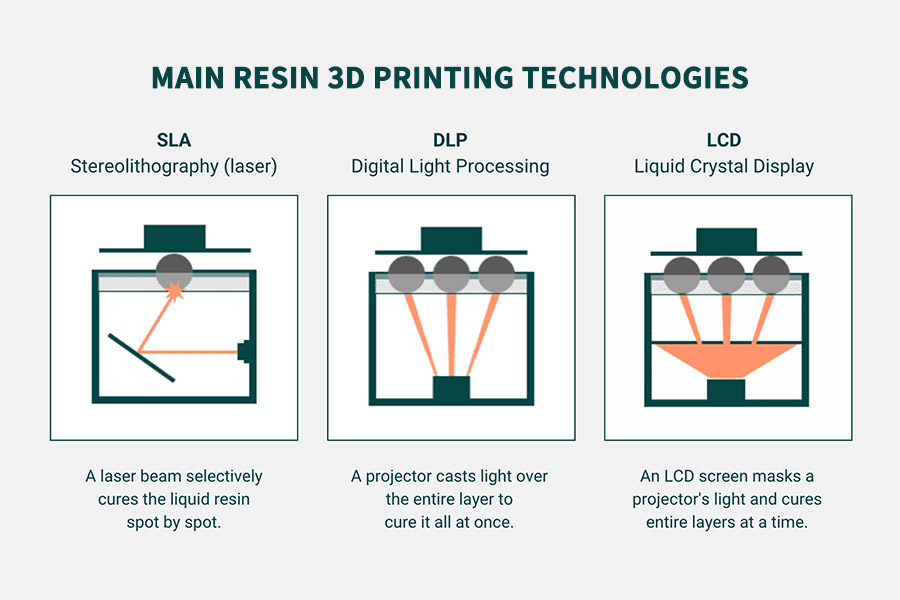

SLA know-how includes utilizing an ultraviolet laser to scan over a vat of liquid photopolymer, solidifying the resin layer by layer. This process is repeated till the whole mannequin is constructed. SLA technology involves a laser beam scanning over the surface of a liquid photosensitive resin, layer by layer, inflicting the resin to solidify and form. Think about utilizing a laser pen to attract on jelly; wherever it touches, it hardens, ultimately making a three-dimensional mannequin.

What’s PolyJet?

PolyJet technology works by jetting microscopic droplets of photopolymers onto a construct platform and instantly curing them with ultraviolet gentle. This know-how can use a number of varieties of resins concurrently, permitting for the printing of multi-color or multi-material composite fashions. PolyJet know-how works like a printer, ejecting photopolymer materials onto a construct platform after which instantly curing it with ultraviolet gentle. This process is repeated, layer by layer, like making a cake, stacking up one layer at a time to form complicated fashions.

What’s SLS ?

SLS technology uses powder material, with a laser scanning every layer in keeping with slice knowledge, melting or sintering the powder right into a stable layer. Since every layer of powder helps the one above it, fashions printed with SLS don’t require extra assist buildings. SLS know-how makes use of a laser to sinter (warmth to only beneath the melting level) powdered materials, inflicting the powder particles to bond collectively. It is like utilizing a laser pen to attract on a pile of sand; the grains are heated after which stick collectively, progressively forming the mannequin you need.

SLA VS PolyJet VS SLS

Expertise Advantages Disadvantages
SLA Excessive precision, {smooth} floor, good element Restricted materials decisions, a number of post-processing steps
PolyJet Can print in a number of colours and materials, excessive precision Increased price, slower printing speed compared to SLS
SLS Excessive materials power, no want for assist buildings, appropriate for batch manufacturing Rough surface, restricted coloration decisions

Software Fields of SLA Expertise:

  • Jewellery Design: As a consequence of its capacity to print high-precision and smooth-surfaced fashions, SLA is especially appropriate for creating complicated jewellery prototypes.
  • Dental and Medical: The precision of SLA printing is apt for producing dental fashions, surgical guides, and different medical instruments.
  • Prototyping and Mannequin Making: SLA is the ideal choice for creating detailed prototypes and fashions of artworks.

Software Fields of PolyJet Expertise:

  • Multi-Materials and Shade Merchandise: PolyJet can print in a number of colours and materials, making it appropriate for creating complicated prototypes of shopper items.
  • Schooling and Analysis: As a consequence of its variety in colours and materials, PolyJet is commonly used for mannequin making in instructing and scientific analysis.
  • Design Verification: Designers can use PolyJet to rapidly confirm the looks and really feel of product designs.

Software Fields of SLS Expertise:

  • Industrial Parts: SLS-printed parts are excessive in power, making them appropriate for manufacturing purposeful industrial components.
  • Automotive Industry: SLS is often used for speedy prototyping and small-batch manufacturing of automotive parts.
  • Aerospace: As a consequence of its excessive power and sturdiness, SLS know-how can also be extensively used within the aerospace field.

Materials Compatibility:

  • SLA: Primarily appropriate with quite a lot of photosensitive resins, providing totally different mechanical and thermal properties.
  • PolyJet: Able to utilizing a number of materials together with clear, versatile, inflexible, or biocompatible materials, and may combine them to create multi-color or multi-material fashions.
  • SLS: Primarily makes use of thermoplastic powders like nylon, with fewer choices, however appropriate for functional parts.

Printing Precision and Floor End:

  • SLA: Excessive precision, {smooth} floor, good element illustration, however might require post-processing to take away assist buildings.
  • PolyJet: Extraordinarily excessive precision, {smooth} floor, virtually no post-processing wanted, appropriate for complicated fashions and positive particulars.
  • SLS: Average precision, barely rough surface, often doesn’t require assist buildings, decreasing post-processing work.

Manufacturing Pace and Value:

  • SLA: Slower pace, price will increase with print quantity, appropriate for small batches or products requiring excessive precision.
  • PolyJet: Quick pace, however materials and tools prices are greater, appropriate for high-quality prototype production.
  • SLS: Average pace, comparatively lower cost, particularly cheaper when printing in massive portions.

Publish-Processing Wants:

  • SLA: Requires cleansing and curing, and may have sanding and portray.
  • PolyJet: Wants water jetting to take away assist materials, however typically less complicated than SLA.
  • SLS: Must take away un-sintered powder, typically adopted by sanding or dyeing.

Components to Take into account When Selecting the Proper Expertise:

  • Objective of Printing: Is it for prototype design, inventive creation, or functional parts?
  • Materials Necessities: What properties do you want from the fabric? Comparable to power, flexibility, or warmth resistance.
  • Precision Wants: How detailed and exact does your mannequin have to be?
  • Price range Constraints: What’s your finances vary? Prices can range considerably between applied sciences.
  • Publish-Processing Time: How a lot time are you able to put money into post-processing the mannequin?

Future Traits:

  • Automation and Intelligence: Future 3D printing applied sciences will turn out to be extra automated, decreasing the necessity for handbook intervention.
  • Materials Innovation: The event of latest materials will expand the applications of 3D printing.
  • Eco-Friendliness: Eco-friendly materials and recyclability will turn out to be a spotlight of analysis and growth.
  • Practical Integration: Printed parts may have extra built-in capabilities, comparable to embedded circuits or sensors.

LongSheng, a 3D printing provider, can present numerous 3D printing companies, together with SLA, PolyJet, and SLS applied sciences.

  1. SLA (Stereolithography):

  2. PolyJet Expertise:

    • LongSheng’s PolyJet service can print multi-material and multi-color fashions, excellent for prototypes and visible fashions.
    • They provide a variety of fabric decisions and be sure that the printed fashions have {smooth} surfaces and exact particulars.
  3. SLS (Selective Laser Sintering):

LongSheng can provide professional advice and high-quality 3D printing companies based mostly in your particular wants. Whether or not you need a prototype, purposeful parts, or an inventive piece, they have you lined!

Conclusion

SLA know-how is understood for its excessive precision and {smooth} surfaces, making it appropriate for fashions with wealthy particulars, however it’s slower and extra expensive. PolyJet know-how can print multi-material and multi-color fashions, providing extraordinarily excessive element precision, excellent for rapid prototyping, although the tools and materials prices are comparatively greater. SLS know-how excels in producing purposeful parts with excessive cost-effectiveness, though its surface quality and element decision are usually not as excessive because the others. The selection of know-how is determined by your wants, together with the aim of printing, material properties, precision, finances, and post-processing time. With technological developments, future 3D printing will likely be extra automated and clever, materials innovation will increase purposes, and eco-friendliness and purposeful integration will turn out to be focal factors.

FAQs

Which 3D printing know-how is greatest for me?

It is determined by your particular wants. Should you require excessive precision and a {smooth} floor end, SLA could be your best option. If it is advisable rapidly print complicated, multi-material, or multi-color fashions, PolyJet know-how could be extra appropriate. For purposeful parts, particularly people who want sturdiness and power, SLS could be a greater choice.

What are the longer term developments in 3D printing know-how?

The future trends in 3D printing technology embrace: Automation and Intelligence: Reducing manual intervention and increasing production effectivity. Materials Innovation: Creating new materials to increase the range of applications, comparable to stronger composites, extra versatile materials, and so forth. Eco-Friendliness: Researching extra sustainable and recyclable materials Built-in Performance: Printed parts may have extra capabilities, comparable to built-in circuits or sensors.
