How to calculate 5 axis CNC machining prices cost?

2022082804025299

What’s 5-Axis CNC Machining?


5-Axis CNC machining is a sophisticated manufacturing course that features a number of shifting chopping devices alongside 5 axes. This allows the creation of intricate and complicated parts with extreme precision and prime quality.

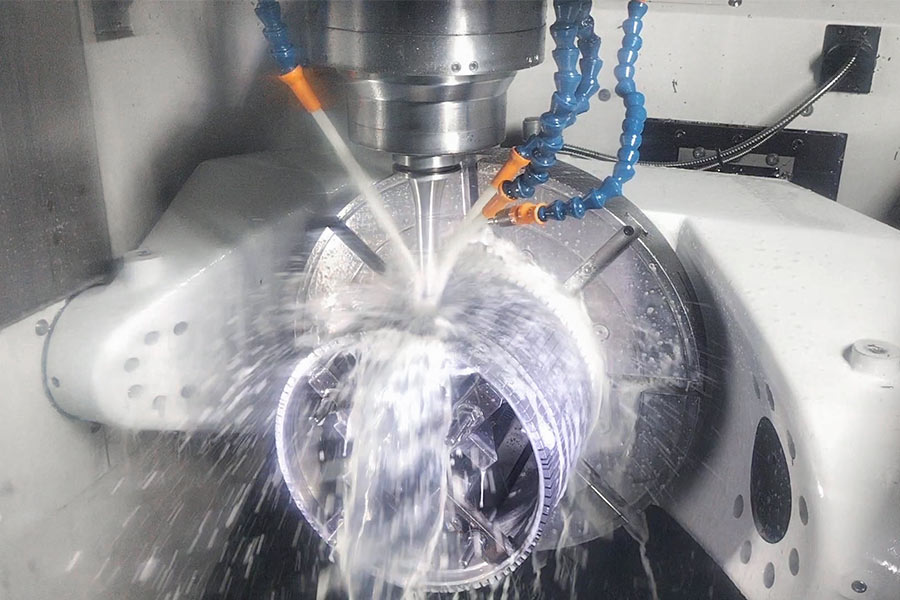

What's 5-Axis CNC Machining?

In distinction to standard 3-axis machining, which solely operates inside the X, Y, and Z dimensions, 5-axis CNC machining gives two additional rotational axes, the A and B axes. This allows the chopping system to methodology the workpiece from all directions, which is very helpful for machining sophisticated shapes and geometries.

Together with technical advantages, five-axis CNC machining additionally has financial advantages. Reducing the need for numerous installations can significantly save set up time, improve the accuracy of each half, improve effectivity, in the reduction of prices, and cut back operator errors.

Nonetheless, to take full benefit of the capabilities of a five-axis CNC machine, the appropriate software program program packages and controls are chosen, the design course of is confirmed sooner than the CAD design is remodeled to CAM, and the operator is assured to be expert and accustomed to the full potential of the machine.

How To Calculate 5-Axis CNC Machining Prices Worth

Calculating the worth of 5-axis CNC machining entails a whole understanding of varied parts that contribute to the last word worth of the machined half. This can be a synthesized info primarily based totally on the supplied key elements from present sources:


1. 5 AXIS CNC Machining value and Working Costs

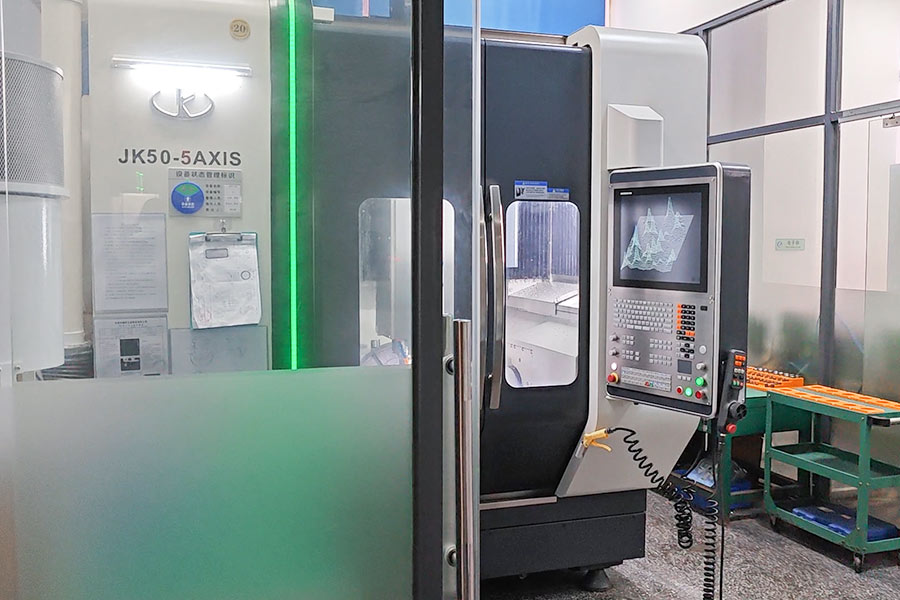

5 AXIS CNC Machining

The value of five-axis CNC machining is affected by 5 elements, that are affected by the dimensions, weight, manufacturing pace, power effectivity and configuration of the machine instrument. 5-axis machines are extra superior than three-axis machines and dearer, with work costs starting from $75 to $125 per hour. As a result of extra motor, encoder and plant administration strategies are totally different, the acquisition value and upkeep value is larger. Nevertheless, the brand new five-axis machines are quicker and extra environmentally pleasant, which can decrease the manufacturing value in the long term.

CNC Machine SortDescriptionApproximate Value Vary (USD)
CNC Milling MachineUsed for chopping and drilling operations on metallic$10,000 – $60,000
CNC LathePrimarily used for turning operations$15,000 – $45,000
CNC RouterSuperb for chopping softer supplies like wooden$3,000 – $20,000
CNC Plasma CutterUsed for chopping metallic and different supplies$8,000 – $30,000
CNC Laser CutterPrecision chopping device for numerous supplies$10,000 – $70,000
5-Axis CNC MachineSuperior machine for complicated geometries$75,000 – $250,000
CNC Swiss MachineSpecialised in precision and complex parts$30,000 – $100,000
CNC Grinding MachineUsed for ending operations$20,000 – $80,000

2. The value of supplies produced by five-axis machines

Totally different supplies to course of, the corresponding value shouldn’t be the identical. The distinction in materials costs is principally primarily based on software, efficiency and manufacturing value. Extremely troublesome and complicated supplies require extra price and time to course of, and costs are continuously rising. The supplies used, paying homage to frequent metals akin to aluminum, stainless-steel and brass, additionally have an effect on worth.



MaterialsApplication scenarioAmountUnite Value (Estimated)Lead Time (Estimated)
AluminumAs Machined1$15 – $302 – 5 days
AluminumAnodizing1$20 – $403 – 7 days
AluminumBead Blasting1$15 – $352 – 6 days
AluminumSprucing1$25 – $503 – 7 days
AluminumPowder Coating1$30 – $604 – 8 days
AluminumElectroplating1$35 – $705 – 10 days
AluminumBrushing1$20 – $453 – 7 days

3. 5-axis engineer labor and programmer value

Labor costs mirror the salaries of CNC operators and programmers. In China, it may well vary from $27 to $50 an hour. The complexity of the work can drive up these costs, particularly if CNC programmers are employed on a per-project foundation. The skilled CAM software program applications required for 5-axis programming will even improve the worth.

4.5-axis Machining Time and Complexity

Processing time is a key issue, as extra time spent processing will increase prices. Complicated parts require longer machining occasions, require the usage of superior five-axis machines, and extra cautious inspection occasions, which will increase prices. The power of five-axis machines to create advanced shapes and options can cut back machining time, however can improve prices as a result of complexity of the parts.

5. Fast prototyping and Batch Manufacturing

We should know that the variety of parts ordered impacts the full price, and the bigger the order, the dearer it often is. Nevertheless, as a result of unfold of manufacturing tools and manufacturing instrument prices, larger output results in decrease prices per half. Mass manufacturing can save prices by optimizing five-axis machine setup and manufacturing materials utilization.

6. Surface Finishing

Surface treatment operations such as heat treatment, surface treatment and coating can add to the price. Surface polishing that requires high precision or multiple finishes increases machine and labor costs.

7. Design Optimization

Design for Manufacturability (DFM) rules may help cut back prices with out compromising half high quality. Optimizing half nesting on materials inventory and environment friendly tooling methods are efficient methods to attenuate waste and price. Simplifying half geometry and avoiding unnecessarily tight tolerances may cut back prices.

8. Geography

Attributable to variations in labor prices, materials prices, five-axis machine depreciation and working bills, the geographic location of CNC machining suppliers can have an effect on the general price.

9. Additional Considerations

Customized instruments, energy consumption, and the usage of non-standard supplies or dimensions additional impression prices. LongSheng can use economies of scale to decrease unit costs.

Instance Calculation

For instance, let’s assume the next for a single half:

Machine price: $100 (amortized per half)
Materials price: $50
Labor price: $60 (2 hours at $30/hour)
Programming price: $20
Ending price: $10
Packaging price: $5

Whole price earlier than revenue: $100 + $50 + $60 + $20 + $10 + $5 = $245


Materials choice and price-profit analysis

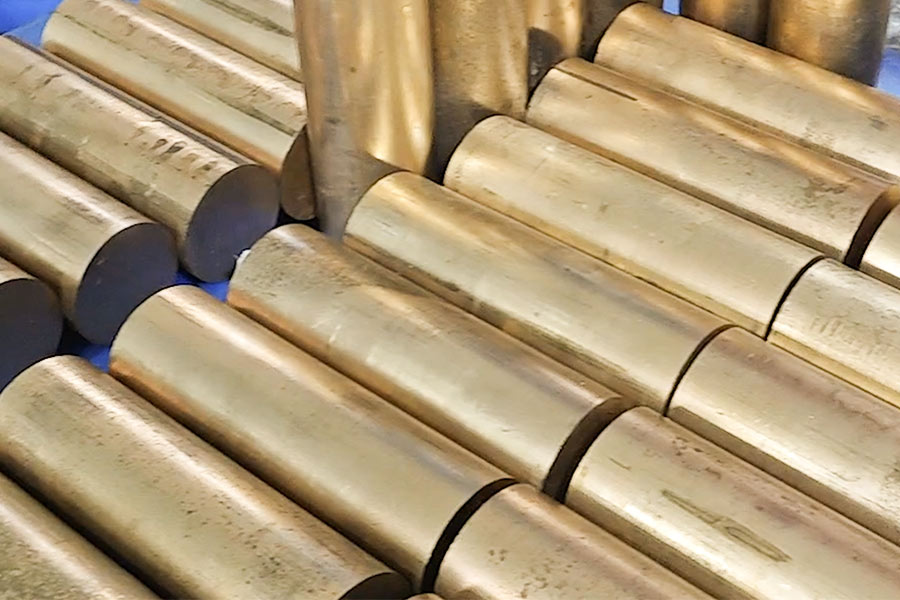

 cnc machining Materials

Selecting secure and inexpensive purposeful requirements can considerably cut back the worth of uncooked supplies. Standardizing provide all through the product monitoring course of minimizes waste, optimizes processing effectivity, and simplifies procurement. Important points in materials choice embody worth, availability, and processability. This prudent method reduces direct materials prices and will increase basic working productiveness.

Beneath is a desk exhibiting the material.
MaterialsApplication scenarioAmountUnit Value (Estimated)Lead Time (Estimated)
AluminumAs Machined1$30 – $502 – 5 days
  10$25 – $455 – 10 days
  100$20 – $4010 – 20 days
  1000$15 – $3520 – 40 days
Stainless MetalAs Machined1$40 – $603 – 7 days
  10$35 – $557 – 14 days
  100$30 – $5015 – 30 days
  1000$25 – $4530 – 60 days
MetalAs Machined1$35 – $552 – 6 days
  10$30 – $506 – 12 days
  100$25 – $4512 – 24 days
  1000$20 – $4024 – 48 days
BrassAs Machined1$30 – $502 – 5 days
  10$25 – $455 – 10 days
  100$20 – $4010 – 20 days
  1000$15 – $3520 – 40 days
CopperAs Machined1$35 – $553 – 7 days
  10$30 – $507 – 14 days
  100$25 – $4515 – 30 days
  1000$20 – $4030 – 60 days
ABSAs Machined1$50 – $1002-5 days
  10$20 – $405-10 days
  100$10 – $2010-15 days
  1000$5 – $1015-20 days
NylonAs Machined1$60 – $1202-5 days
  10$30 – $605-10 days
  100$15 – $3010-15 days
  1000$10 – $2015-20 days
POM As Machined1$70 – $1402-5 days
  10$40 – $805-10 days
  100$20 – $4010-15 day
  1000$15 – $3015-20 days
Be aware: The values offered above are for reference functions solely. For extra info, please get in contact with Longsheng straight.


Outsourcing CNC machining suppliers with LongSheng


CNC machining service outsourcing. Nonetheless, choosing an outsourcing location is crucial. Outsourcing to firms in developed nations is perhaps pricey, however in areas like China, the place working costs are decrease, firms can supply aggressive prices with out compromising prime quality.

For example, Chinese language-language firms like LongSheng present high-quality CNC machining companies at a fraction of the related price in contrast with their counterparts in developed economies. This makes outsourcing a viable selection to cut back basic processing costs, significantly for firms attempting to optimize budgets with out sacrificing prime quality.

As soon as you utilize LongSheng, your CNC machining costing turns into straightforward. Our Quick quote platform permits you to receive your quote nearly instantly. We’ll evaluation your design and provide solutions inside a day.

We even have one of many quickest provide events inside the commerce to make sure your merchandise arrives. So why wait? Start working in your CNC machining mission and get a CNC quote!



Conclusion


On this case, the estimated value of machining half utilizing a 5-axis CNC could possibly be $245. This value can fluctuate drastically relying on the half’s complexity, the machining course of’s effectiveness, and the machining service’s geographical location. It should be famous that this can be a simplified instance, and the exact value might comprise extra detailed questions, akin to the worth of a high-quality inspection, the potential for a considerable discount in provide, and the correct electrical energy invoice for the realm.

When calculating costs for real-world transaction states, gathering the right info for every challenge and altering the calculations accordingly is crucial. As well as, prices can fluctuate between totally totally different service suppliers, so it’s usually useful to get a number of quotes to make sure aggressive pricing.
