Casting is a producing process that includes pouring liquid materials right into a mold, which incorporates a hole cavity of the specified form, after which permitting it to solidify. The solidified half is often known as a casting, which is ejected or damaged out of the mold to finish the process. This process is utilized in numerous industries to create a variety of products.
Die casting and permanent mold casting are two totally different strategies of casting.
Die casting is a metallic casting process that’s characterised by forcing molten metallic below excessive stress right into a mold cavity. The mold cavity is created utilizing two hardened device metal dies which have been machined into form and work equally to an injection mold in the course of the process.
However, permanent mold casting, often known as gravity die casting, makes use of a reusable mold (or die) produced from metallic, normally metal or forged iron, which is then crammed with the molten metallic. The metallic is poured into the mold by a gravity-induced process, with out using exterior stress.
The aim of this text is to obviously clarify the variations between these two casting processes and to assist readers perceive when to make use of every methodology. By understanding the distinctive benefits and limitations of every process, producers could make knowledgeable selections about which process to make use of for a selected utility.
Die Casting

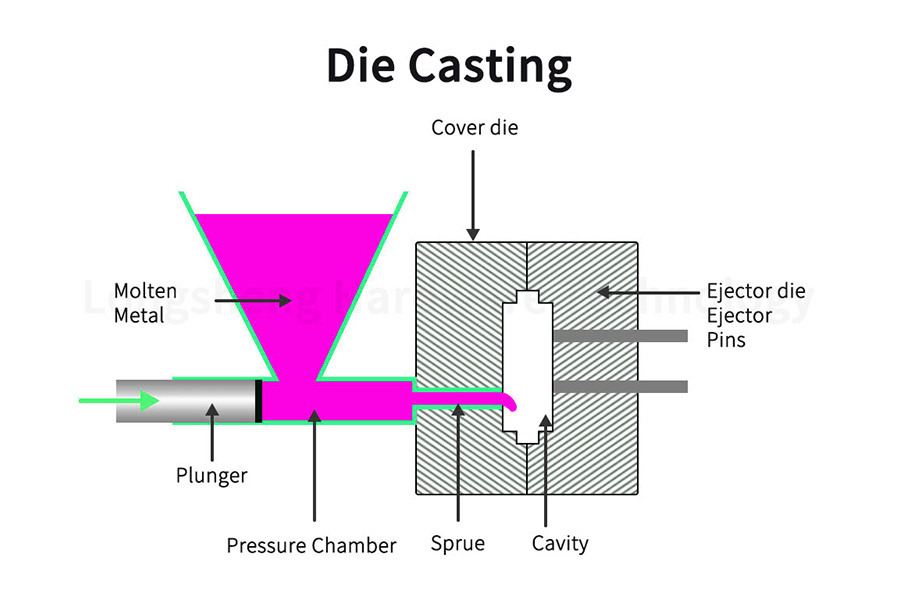

Process Rationalization: Description of the Die Casting Process
Die casting is a metallic casting process that includes forcing molten metallic below excessive stress right into a mold cavity. The mold cavity is created utilizing two hardened device metal dies which have been machined into form and work equally to an injection mold in the course of the process. The metallic hardens rapidly to kind the half, due to the excessive stress and quick cooling.
Advantages: Highlighting the Advantages of Die Casting
Die casting has a number of benefits, together with:
- Excessive manufacturing velocity and effectivity: Die casting is a extremely environment friendly process that enables for prime quantity manufacturing of parts with minimal post-processing.
- Glorious dimensional accuracy and floor end: The excessive stress utilized in die casting ensures that the molten metallic fills all areas of the mold, leading to parts with wonderful dimensional accuracy and a clean floor end.
- Capacity to create complicated shapes with intricate particulars: Die casting permits for the manufacturing of parts with complicated shapes and complex particulars that may be tough to realize with different casting strategies.
- Robust thin-wall capabilities: Die casting is especially efficient for producing parts with skinny partitions, which might be difficult to fabricate utilizing different strategies.
Disadvantages: Discussing the Limitations of Die Casting
Regardless of its many benefits, die casting additionally has some limitations:
- Excessive mold prices: The molds utilized in die casting are costly to supply, making this methodology extra appropriate for high-volume manufacturing.
- Restricted to decrease melting level metals: Die casting is often used with metals which have a decrease melting level, similar to aluminum, zinc, and magnesium.
- Potential for porosity and different defects: The excessive stress and quick cooling utilized in die casting can result in porosity and different defects within the ultimate parts.
Widespread Purposes: Examples of Merchandise Usually Manufactured Via Die Casting
Die casting is often used to fabricate a variety of merchandise, together with automotive parts, digital enclosures, and elements for family home equipment.
Permanent Mould Casting

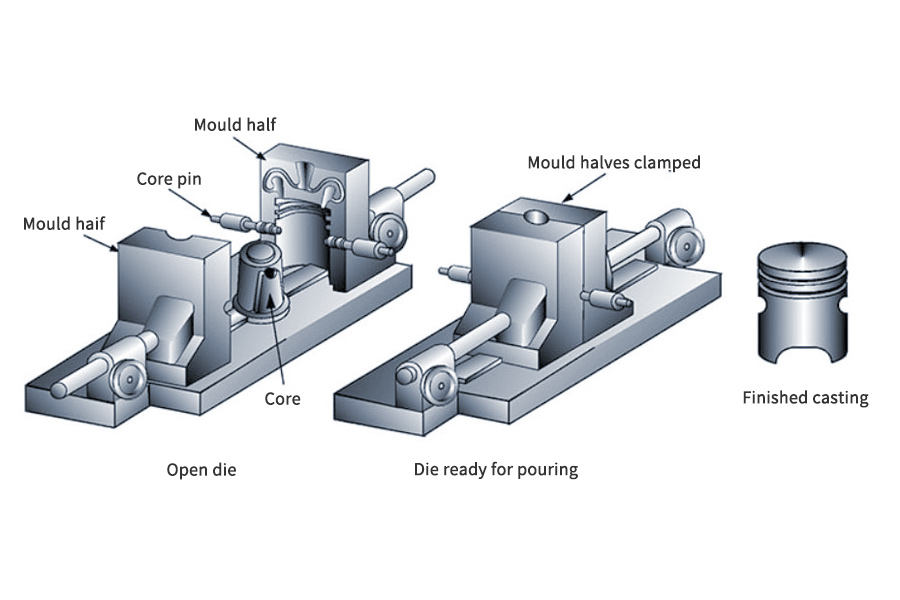

Process Rationalization: Description of the Permanent Mould Casting Process
Everlasting mold casting, often known as gravity die casting, is a metallic casting process that employs reusable molds (“permanent molds”) produced from metallic. The process includes pouring molten metallic into the mold below gravity. In comparison with die casting, the cooling velocity is slower, which may affect the ultimate properties of the solid half.
Advantages: Highlighting the Advantages of Permanent Mould Casting
- Decrease mold price in comparison with die casting: This makes it extra appropriate for decrease manufacturing volumes.
- Good dimensional accuracy and floor end: The usage of metallic molds permits for prime precision and a clean floor on the completed half.
- Capacity to create thicker and extra complicated geometries than die casting: This offers extra flexibility within the design of the solid half.
- Relevant to a wider vary of metals and alloys: This makes it a flexible process that can be utilized for a wide range of purposes.
Disadvantages: Discussing the Limitations of Permanent Mould Casting
- Slower manufacturing velocity in comparison with die casting: This could restrict its use in high-volume manufacturing.
- Restricted design flexibility in comparison with die casting: Whereas it might produce extra complicated geometries than die casting, there are nonetheless some limitations to the design of the solid half.
Widespread Purposes: Examples of Merchandise Usually Manufactured Via Permanent Mould Casting
Permanent mold casting is often used to fabricate merchandise similar to engine cylinder blocks, wheels, and numerous industrial elements. These purposes profit from the great dimensional accuracy, floor end, and design flexibility provided by the process.
Comparability between Die Casting and Permanent Mould Casting
Here’s a desk summarizing the important thing variations between die casting and everlasting mold casting when it comes to mold sort, metallic pouring methodology, cooling velocity, manufacturing velocity, price, dimensional accuracy, design flexibility, and materials applicability:
| Comparability Standards | Die Casting | Everlasting Mould Casting |
|---|---|---|
| Mould Sort | Excessive-cost, high-durability molds | Decrease-cost, reusable metallic molds |
| Metal Pouring Methodology | Excessive-pressure injection | Gravity pouring |
| Cooling Velocity | Speedy cooling | Slower cooling in comparison with die casting |
| Manufacturing Velocity | Excessive manufacturing velocity | Slower manufacturing velocity in comparison with die casting |
| Price | Excessive mold price, appropriate for high-volume manufacturing | Decrease mold price, appropriate for decrease volumes |
| Dimensional Accuracy | Glorious dimensional accuracy | Good dimensional accuracy, however not as exact as die casting |
| Design Flexibility | Can create complicated shapes with intricate particulars | Restricted design flexibility in comparison with die casting |
| Materials Applicability | Restricted to decrease melting level metals | Appropriate for a wider vary of metals and alloys |
Die casting is extra appropriate for high-volume manufacturing of complicated parts with wonderful dimensional accuracy, however it’s restricted to metals with decrease melting factors and has the next mold price. However, permanent mold casting is less expensive for decrease volumes, gives good dimensional accuracy, and might work with a wider vary of metals and alloys, however it has slower manufacturing and cooling speeds and fewer design flexibility.
Conclusion
Table: Comparability of Die Casting and Permanent Mould Casting
| Casting Methodology | Essential Variations | Advantages | Disadvantages | Appropriate Eventualities |
|---|---|---|---|---|
| Die Casting | Makes use of high-pressure injection of molten metallic into high-cost, high-durability molds. Gives speedy cooling and excessive manufacturing velocity. Glorious in dimensional accuracy and might create complicated shapes. Restricted to decrease melting level metals. | Excessive manufacturing velocity, wonderful dimensional accuracy, means to create complicated shapes. | Excessive mold price, restricted to decrease melting level metals. | Appropriate for high-volume manufacturing of complicated parts with excessive dimensional accuracy necessities, particularly for decrease melting level metals like aluminum, zinc, and magnesium. |
| Permanent Mould Casting | Makes use of gravity pouring of molten metallic into lower-cost, reusable metallic molds. Has slower cooling and manufacturing velocity in comparison with die casting. Gives good dimensional accuracy and is appropriate for a wider vary of metals and alloys. | Decrease mold price, appropriate for a wider vary of metals and alloys. | Slower manufacturing velocity, restricted design flexibility in comparison with die casting. | Appropriate for decrease quantity manufacturing of parts with average complexity and dimensional accuracy necessities. Can deal with a wider vary of metals and alloys, together with these with increased melting factors. |
FAQs
Which process is extra appropriate for my challenge?
The selection between die casting and everlasting mold casting is dependent upon a number of components associated to your challenge necessities. These embrace the manufacturing quantity, price, supplies, and complexity of the design. Attributable to its quicker manufacturing velocity, die casting could also be extra appropriate for high-volume manufacturing. Nevertheless, for decrease volumes or extra complicated designs, everlasting mold casting is perhaps a more sensible choice.
What are the everyday prices of those two processes?
The price of die casting and permanent mold casting can range extensively relying on components such because the design of the mold, the supplies used, and the manufacturing quantity. Typically, die casting might be costlier because of the excessive price of the die. Nevertheless, this price might be offset if the manufacturing quantity is excessive. However, everlasting mold casting could have decrease mold prices, however the per-piece price might be increased, particularly for low-volume manufacturing.
What supplies are appropriate for die casting and permanent mold casting?
Each die casting and permanent mold casting can be utilized with a wide range of metals and alloys. Widespread supplies for die casting embrace aluminum, zinc, and magnesium. For permanent mold casting, supplies typically embrace aluminum, brass, and bronze.
How to make sure the standard of castings?
Making certain the standard of castings includes a number of high quality management measures. These embrace cautious design of the mold, optimization of process parameters, and use of defect detection strategies. Common inspection and testing may assist establish and proper any points early within the manufacturing process.
