Fixture Finesse: Unveiling the Secrets to Masterful CNC Machining

2022082804025299

In the world of manufacturing, CNC machining services have revolutionized the industry. These services utilize Computer Numerical Control (CNC) machining, a precise and efficient method, where computers control the movement and operation of machining tools such as mills, lathes, and routers. This comprehensive guide will take you through the intricacies of CNC machining, from understanding the basics to mastering advanced techniques.

At the heart of CNC machining lies a critical element often overlooked: fixtures. In this comprehensive guide, we delve deep into the world of CNC machining, exploring the pivotal role of fixtures in achieving superior results.

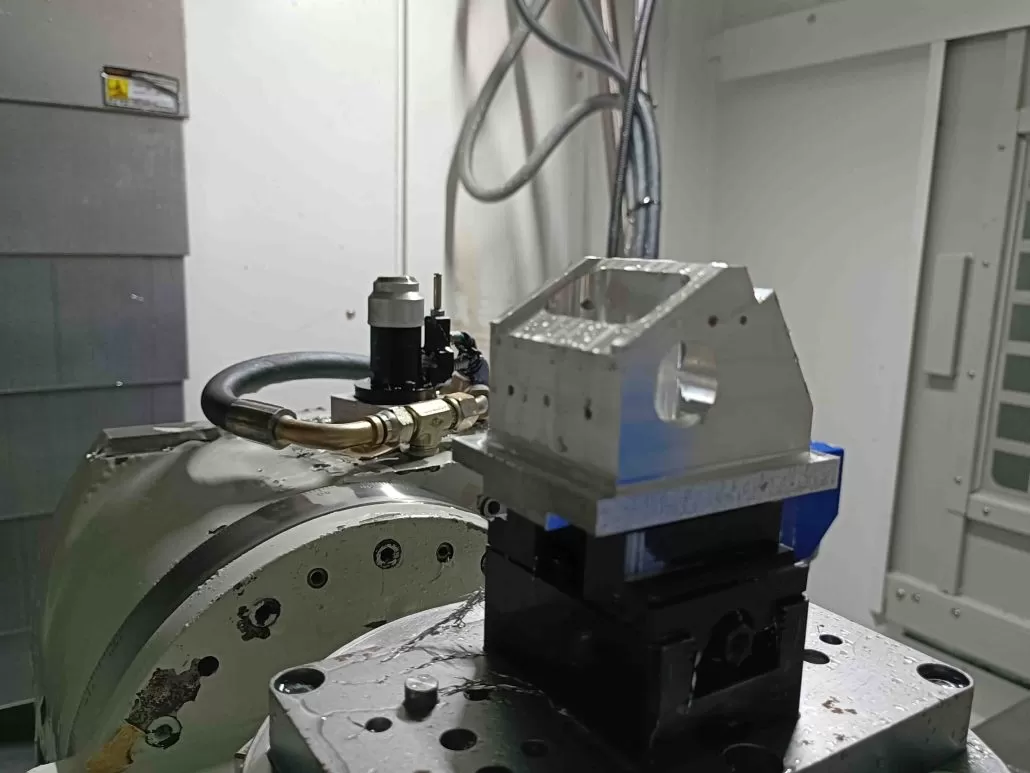

CNC Machining

The Significance of Fixtures in CNC Machining

Fixtures are indispensable tools in CNC machining, serving as the backbone for holding workpieces securely and consistently in position during machining operations. These devices are the unsung heroes behind the precision and repeatability associated with CNC machining. They ensure that each part produced meets exacting specifications, minimizes errors, and maximizes efficiency. Fixtures play a vital role in reducing setup times and allowing for uninterrupted, automated production, ultimately resulting in cost savings and improved product quality.

Types of Fixtures and Their Applications

Fixtures come in various forms, each designed for specific applications. Understanding the different types of fixtures is crucial in optimizing CNC machining processes:

1.Dedicated Fixtures

These are custom-designed fixtures tailored for a particular part or component, ensuring optimal accuracy and repeatability. They are ideal for high-volume production.

2.General Fixtures

These versatile fixtures can accommodate a range of workpieces, making them suitable for small to medium-sized batches or when part variety is essential.

3.Modular Fixtures

Combining flexibility with efficiency, modular fixtures consist of interchangeable components that can adapt to different workpiece shapes and sizes, reducing setup times and costs.

Designing Effective Fixtures for Precision

Effective fixture design is pivotal to the success of CNC machining operations. The key considerations include:

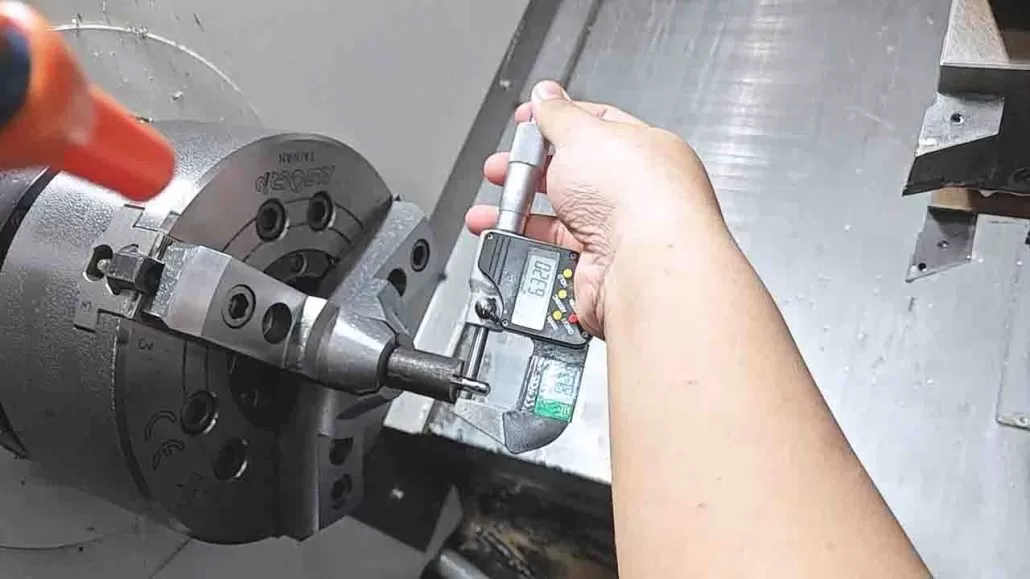

CNC machining parts

Workpiece Geometry: Understanding the shape and dimensions of the workpiece is crucial in determining the type of fixture required.

Clamping Mechanisms: Selecting the right clamping mechanism, such as clamps, vises, or magnetic systems, depends on the workpiece material and geometry.

Fixture Material: Choosing materials with the appropriate strength, durability, and heat resistance properties is essential for long-lasting fixtures.

Material Selection for CNC Machining Fixtures

The material used for fixtures should exhibit high durability and dimensional stability while withstanding the rigors of CNC machining. Common materials for fixture construction include:

Aluminum: Lightweight and corrosion-resistant, aluminum is a popular choice for fixtures due to its ease of machining and excellent thermal conductivity.

Steel: Known for its strength and stability, steel fixtures are suitable for heavy-duty machining applications, especially for ferrous workpieces.

Composite Materials: Some applications benefit from composite fixtures, which combine the advantages of different materials to achieve specific requirements.

Fixture Setup and Calibration

Accurate setup and calibration of fixtures are paramount to ensuring precise CNC machining. The process involves:

Alignment: Properly aligning the fixture with the machine’s coordinate system to guarantee accurate machining.

Clamping Force: Adjusting the clamping force to securely hold the workpiece without deformation or slippage.

Zero Point Calibration: Establishing the workpiece’s reference point relative to the CNC machine’s coordinate system to enable accurate toolpath execution.

Workholding Techniques for CNC Machines

Workholding techniques play a critical role in fixture design, ensuring the workpiece remains firmly in place during machining. Some essential techniques include:

Jigs and Fixtures: Custom-designed jigs and fixtures aid in securing complex workpieces, allowing for precise machining.

Vacuum Chucks: Effective for holding thin or delicate materials in place using vacuum pressure.

Magnetic Workholding: Utilizing magnets to secure ferrous workpieces, reducing setup times and increasing efficiency.

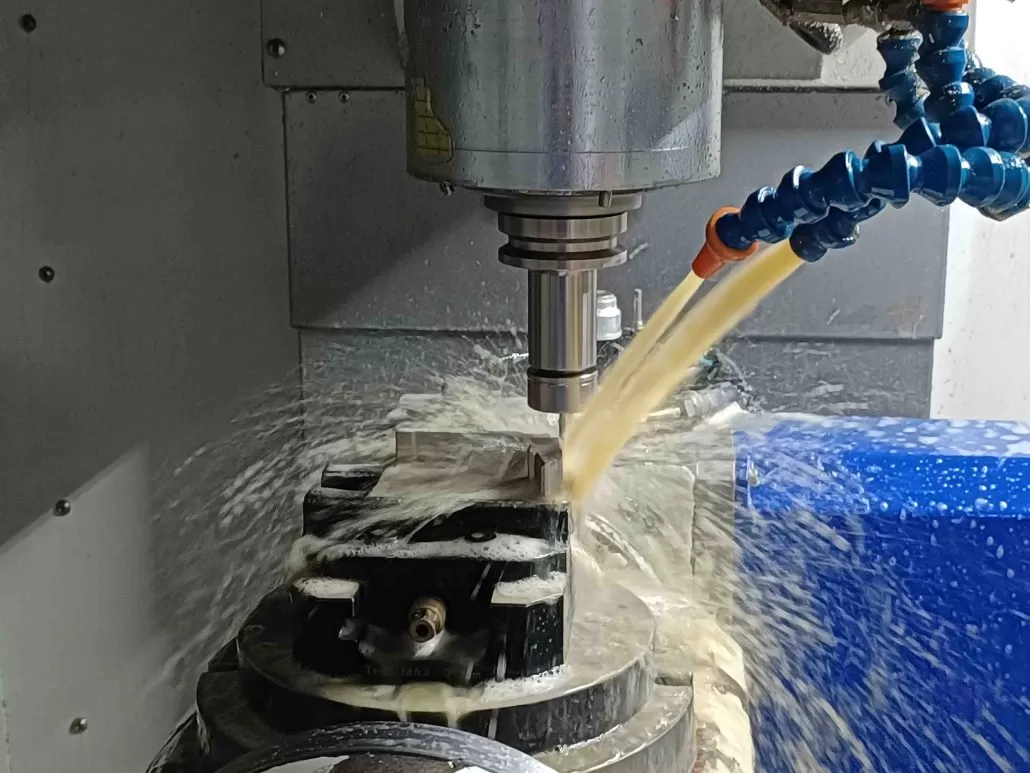

CNC Machines

Advanced CNC Machining Strategies

To further enhance CNC machining capabilities, advanced strategies are employed:

Multi-Axis Machining: Utilizing multi-axis CNC machines for intricate and complex part geometries, reducing the need for extensive fixture modifications.

High-Speed Machining: Optimizing cutting speeds and feeds for faster machining without compromising precision.

Lights-Out Machining: Leveraging automation and robotics to enable uninterrupted production, even during non-working hours.

Milling Machining:CNC milling usually has multi axis motion and multi blade cutting tools, which can complete multiple machining operations through one clamping process.

Turning Machining:CNC turning can adopt automated solutions for certain workpieces, such as robot clamping, to reduce the dependence of operators on fixtures.

Toolpath Optimization and Fixture Considerations

Optimizing toolpaths is integral to achieving superior CNC machining results:

Collision Avoidance: Careful toolpath planning and fixture design prevent collisions between the cutting tool and fixture components.

Fixture Integration: Integrating the fixture design into the CAM (Computer-Aided Manufacturing) software to streamline the machining process.

Fixture Maintenance and Troubleshooting

Proper fixture maintenance ensures consistent performance and longevity. Routine tasks include:

Cleaning and Lubrication: Regularly cleaning and lubricating fixture components to prevent wear and maintain clamping effectiveness.

Inspection: Periodic inspections to identify and rectify any signs of wear, damage, or misalignment.

Troubleshooting: Promptly addressing issues such as slippage, misalignment, or deformation to minimize downtime and maintain production efficiency.

Innovations in CNC Machining Fixtures

Advancements in CNC machining fixtures continue to push the boundaries of what is achievable:

3D Printing of Fixtures: Additive manufacturing techniques allow for rapid prototyping and custom fixture creation, reducing lead times.

Smart Fixtures: Integration of sensors and monitoring systems enables real-time feedback, improving process control and efficiency.

Future Trends in Fixture Technology

The future of CNC machining fixtures promises exciting developments:

Artificial Intelligence (AI) Integration: AI-driven optimization of fixture designs and toolpaths for increased efficiency and reduced material waste.

Sustainable Materials: A focus on eco-friendly materials and processes to minimize the environmental impact of fixture production.

Sustainability in CNC Machining Fixtures

As environmental concerns become more significant, sustainability in CNC machining fixtures gains importance:

Recyclable Materials: Selecting materials that can be easily recycled or reused at the end of their lifecycle.

Energy Efficiency: Implementing energy-efficient fixture designs and processes to reduce resource consumption.

Conclusion: Mastering CNC Machining with Fixtures

In the world of CNC machining, fixtures are the unsung heroes that make precision and efficiency possible. Their role in securing workpieces, optimizing toolpaths, and ensuring repeatability cannot be overstated. By understanding the types, design principles, and maintenance considerations of fixtures, manufacturers can unlock the full potential of CNC machining, leading to superior product quality and cost-effective production. Embracing emerging technologies and sustainable practices will pave the way for a future where CNC machining fixtures continue to evolve, meeting the ever-growing demands of modern manufacturing. So, as you embark on your journey in the world of CNC machining, remember that mastering the power of fixtures is the key to unlocking the full potential of this remarkable technology.
