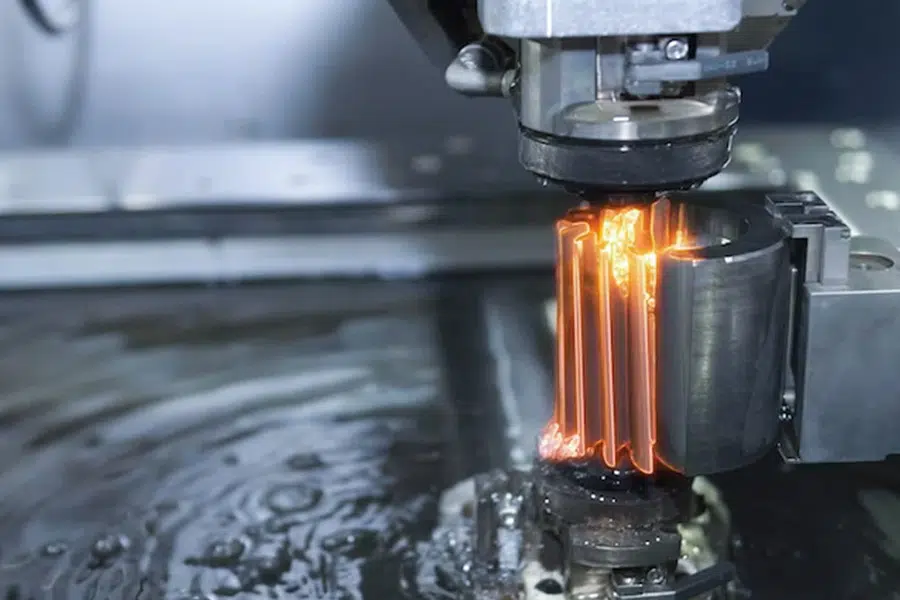

What is Wire EDM?
Wire EDM, or Wire Electrical Discharge Machining, is a precision machining process that uses electrical discharges to cut through conductive materials with high accuracy. The process involves a thin, electrically charged wire that erodes material from the workpiece through a series of rapid, controlled electrical discharges. This method is renowned for producing complex shapes and high-precision components with tight tolerances.
What is the History and Origins of Wire EDM?
Wire EDM technology was developed in the 1960s as an extension of electrical discharge machining (EDM). The initial concept of EDM dates back to the 1770s, but practical applications began in the mid-20th century. The development of Wire EDM allowed for more intricate and precise cutting capabilities, revolutionizing the manufacturing industry by enabling the production of complex components that were previously difficult or impossible to machine with traditional methods.

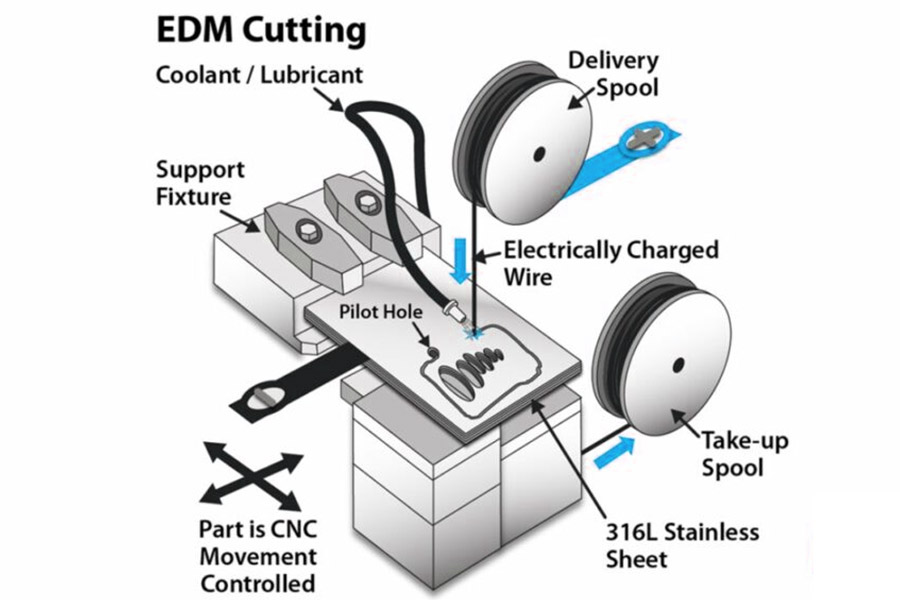

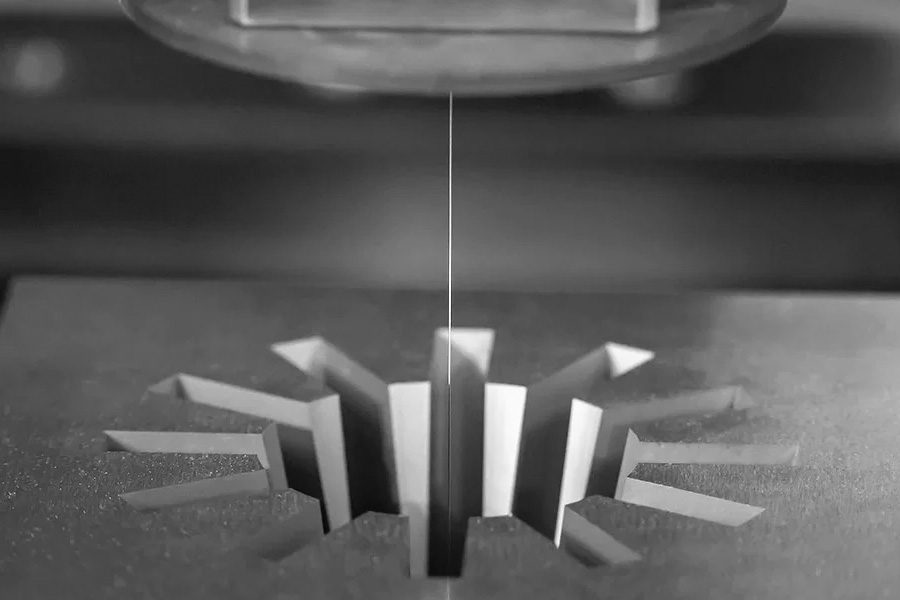

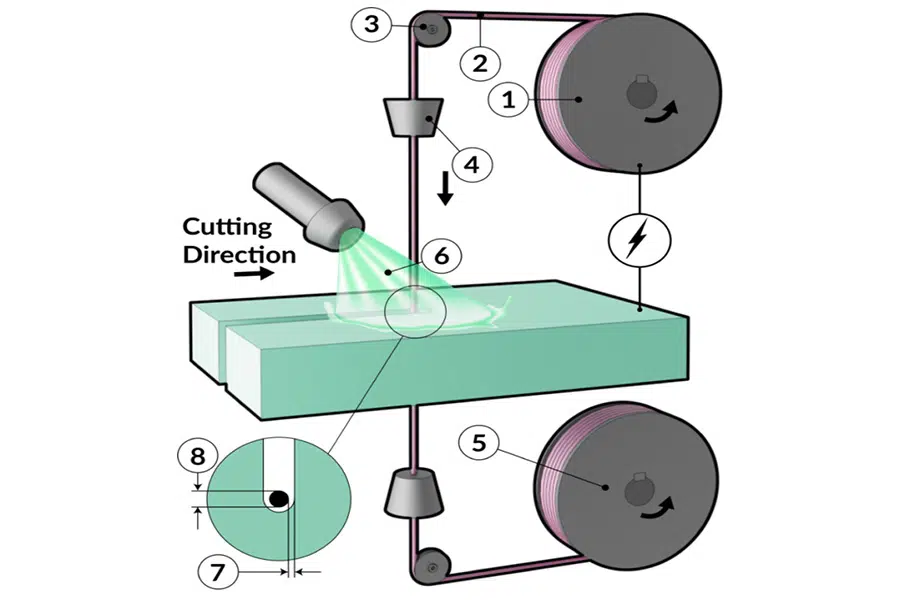

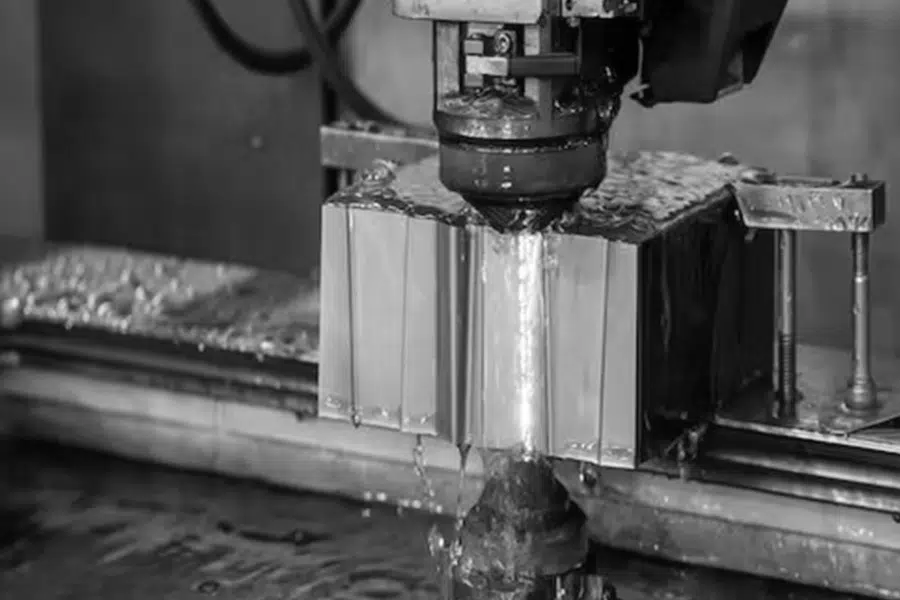

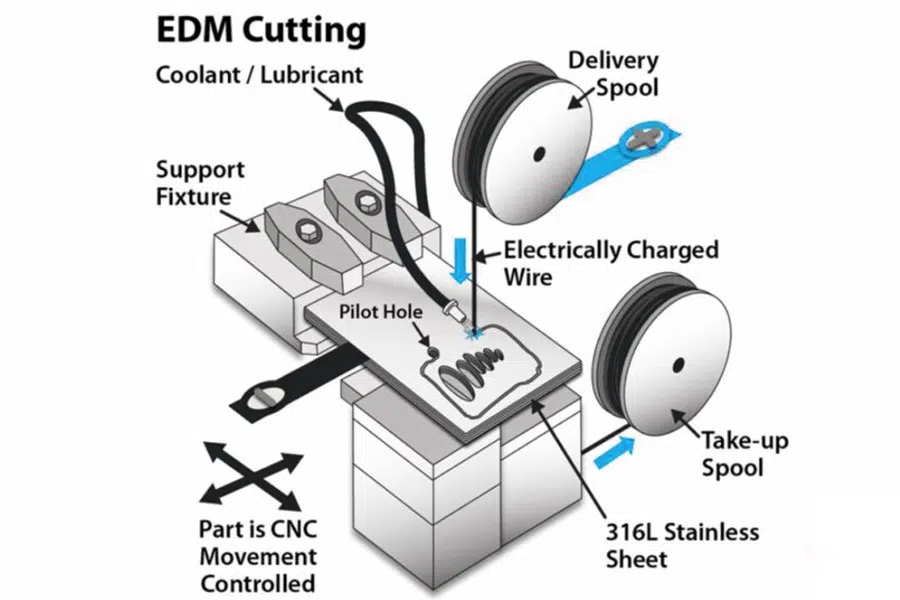

How Does Wire EDM Work?
Wire EDM works by generating a series of electrical sparks between a thin wire and the workpiece. The wire, typically made of brass or copper, is fed through the workpiece while submerged in a dielectric fluid. The fluid acts as an insulator and coolant, facilitating the removal of eroded material and maintaining the integrity of the cutting process. The electrical discharges create precise cuts, allowing for intricate shapes and fine details to be achieved.
What Are the Core Components of a Wire EDM Machine?
A Wire EDM machine comprises several essential components:
- Wire Feed Mechanism: Feeds the wire continuously through the workpiece.
- Dielectric System: Submerges the workpiece in a dielectric fluid to cool and insulate the cutting area.
- Power Supply: Generates the electrical discharges necessary for cutting.
- Control Unit: Regulates the movement and operation of the machine, often using computer numerical control (CNC) technology for precision.
- Workpiece Holder: Secures the material in place during the machining process.
What Materials Can Be Processed with Wire EDM?
Wire EDM is versatile and can process a wide range of conductive materials, including:
- Steel (both hardened and soft)
- Aluminum
- Brass
- Copper
- Titanium
- Carbide
- Exotic alloys
What are the Applications of Wire EDM Cutting?
Wire EDM is used in various industries for precision cutting and shaping applications, including:
- Aerospace: For producing turbine blades, fuel injectors, and other high-precision components.
- Automotive: For cutting gears, shafts, and intricate engine parts.
- Medical: For manufacturing surgical instruments, implants, and medical device components.
- Electronics: For creating precise components such as connectors, lead frames, and microelectronic parts.
- Tool and Die: For producing complex molds, dies, and tooling components.
What are the Benefits of Wire EDM Cutting?
Wire EDM offers several advantages:
- High Precision: Capable of achieving tight tolerances and intricate shapes.
- Complex Geometries: Can cut complex and detailed shapes that are difficult to achieve with other methods.
- Material Versatility: Can process a wide range of conductive materials.
- No Mechanical Stress: The non-contact nature of the process reduces the risk of mechanical stress and deformation.
- Smooth Surface Finish: Produces smooth and precise surface finishes, reducing the need for additional finishing operations.
What are the Limitations and Challenges of Wire EDM Cutting?
Despite its advantages, Wire EDM has some limitations:
- Material Conductivity: Only works with conductive materials.
- Speed: Slower than some other machining methods, particularly for thicker materials.
- Cost: Initial setup and operational costs can be high, making it less cost-effective for high-volume production runs.
- Wire Consumption: Continuous consumption of wire adds to the operational costs.
What are Precision and Tolerances in Wire EDM?
Wire EDM is known for its exceptional precision and ability to achieve tight tolerances, typically in the range of ±0.001 inches (±0.025 mm) or better. The accuracy depends on factors such as machine quality, operator skill, and the specific requirements of the application.
How Thick Can Wire EDM Cut?
Wire EDM can cut materials ranging from very thin sheets to thick plates, typically up to 12 inches (300 mm) thick. The cutting thickness depends on the machine’s capabilities and the specific material being processed.
How Fast Does Wire EDM Cut?
The cutting speed of Wire EDM varies based on the material type, thickness, and required precision. Generally, the process can cut at speeds ranging from 1 to 20 square inches per hour (6.5 to 130 square centimeters per hour).
How Long Does Wire EDM Cutting Typically Take?
The time required for Wire EDM cutting depends on the complexity and size of the part, material thickness, and desired precision. Simple cuts can take a few hours, while more complex shapes and thicker materials may require several hours to complete.
How Much Does Wire EDM Cutting Cost?
Wire EDM cutting costs vary based on factors such as material type, part complexity, and production volume. Costs typically range from $50 to $200 per hour, with additional expenses for wire and dielectric fluid consumption.
What are Key Factors to Consider When Using Wire EDM?
When using Wire EDM, consider the following factors:
- Material properties and conductivity
- Desired precision and tolerances
- Part complexity and geometry
- Production volume and cost-effectiveness
- Machine capabilities and maintenance requirements
Safety and Maintenance in Wire EDM Operations
Safety and maintenance are crucial for efficient and safe Wire EDM operations:
- Safety Measures: Ensure proper insulation and grounding to prevent electrical hazards. Use protective gear and follow operational guidelines.
- Regular Maintenance: Perform routine maintenance, including wire and dielectric fluid replacement, machine calibration, and component inspection to ensure optimal performance and longevity.
How do you select a Wire EDM Service Provider?
Selecting the right Wire EDM service provider is essential for achieving high-quality results. Consider the following when choosing a provider:
- Experience and expertise in Wire EDM cutting
- Availability of advanced and well-maintained machinery
- Proven track record of delivering precise and high-quality components
- Ability to handle specific material and application requirements
- Competitive pricing and turnaround times
How does Wire EDM compare to Other EDM Technologies?
Wire EDM differs from other EDM technologies such as sinker EDM and hole drilling EDM in terms of application and capabilities:
- Sinker EDM: Uses shaped electrodes to create cavities and complex geometries, suitable for molds and dies.
- Hole Drilling EDM: Specifically designed for drilling small and precise holes in hard materials.
Wire EDM excels in cutting intricate shapes and fine details, while sinker EDM and hole drilling EDM are better suited for specific tasks such as cavity formation and precise hole drilling.
What is the Future of Wire EDM Technology?
The future of Wire EDM technology is promising, with ongoing advancements in machine precision, automation, and material capabilities. Innovations such as improved wire materials, enhanced control systems, and integration with additive manufacturing techniques are expected to further expand the applications and efficiency of Wire EDM.
Conclusion
Wire EDM is a highly precise and versatile machining process that plays a crucial role in various industries. By understanding its principles, benefits, applications, and limitations, manufacturers can leverage Wire EDM to achieve complex geometries and tight tolerances in a wide range of materials.
